ZB-700 automatic coffee cup sleeves gluing drying machine

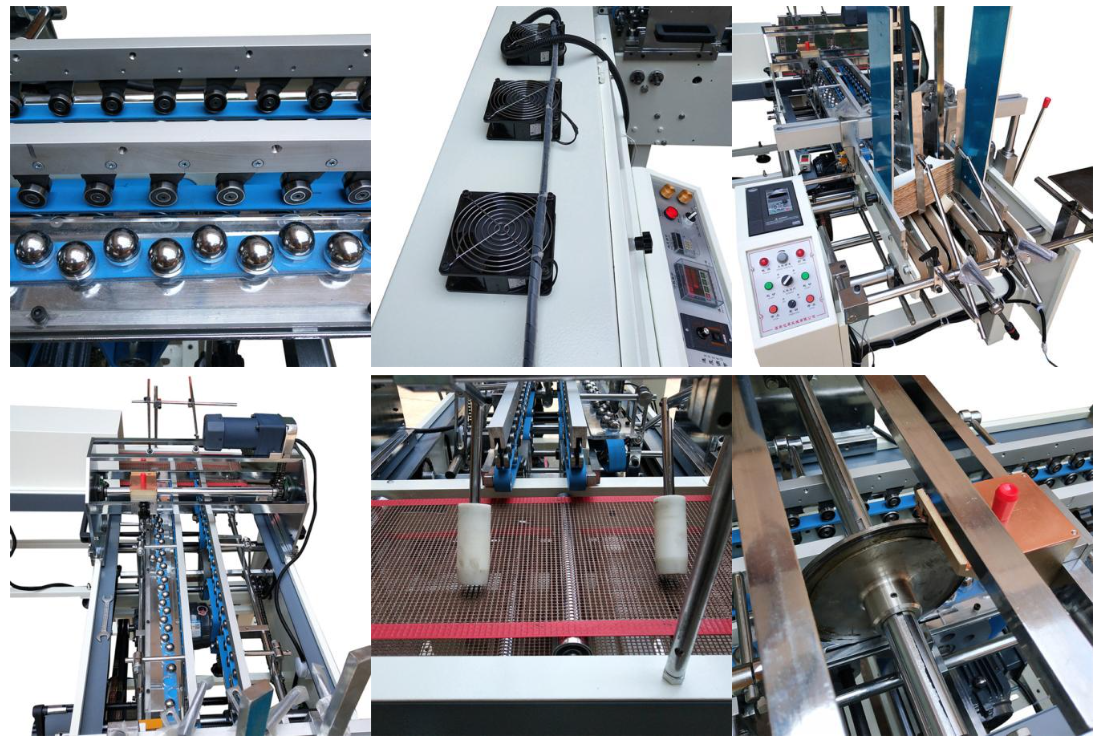

ZB-700 automatic coffee cup sleeves gluing drying machine is a special model designed for cup slices by our company. The angle of the paper feed knife is adjustable, the ball is automatically rectified, and the glue is automatically applied. The 7-shaped design greatly shortens the length. In addition to the baking function, the drying section also adds air blowing function to make the surface of the cup dry faster and more thoroughly.
Product Details
| Specification | |
| 1.The use of tilt adjustable paper vertical knife can adjust angle according to the paper cup sleeve radian and disappear the cardboard locking or two pieces one time phenomenon; 2.Automatic correction of boundary function can make the box line operation and better guarantee the glue evenly; 3.Adopting high temperature resistant fiber mesh conveyor belt; 4.Infrared high power heating pipe; 5.Safety low-voltage DC cooling; |
|
| Function | gluing and drying cup sleeves |
| Paper board | 210-600 g/m², N/E/F corrugated box |
| Speed | 0-220 m/min |
| Power | 3.7 kw 220V/380V |
|
Weight |
1200KG |
| Package | 2 packages with wooden cases |
| Delivery Time | 7-21 days |
| MOQ | 1 set |
| Loading port | NINGBO PORT, CHINA |
| Payment | by TT/ LC/ Western Union |
| Shipping way |
By sea/ truck/ train/ courier |
| Total Power | 8.5kW |
| Electric Motor Power | 1.5kW+04kW |
| Power of Electric Heating | 6kW+(0.38*11)kW |
| Speed(the Main Machine) | 1m-150m/min |
| Speed(the Accessory) | 1m-50m/min |
| Overall Dimensions(the Main Machine) | 1800*1000*1300mm |
| Overall Dimensions(the Accessory) | 3540*450*1050mm |
| Total weight | 1.2T |
FAQ
1.Q:What is the machine warranty?
A: 12 months
2.Q:Does your machine with CE certificate?
A:Yes, issued by Italian organization
3.Q:What is the production time while placing order?
A: 7-30 days, some model has in stock.
4.Q:What can be offered after paying deposit?
A: processing video and picture; Oversea technical guidance; installation videos. Oversea technician.
5.Q:Can your company handle shipping for customers?
A:Of course, just give us destination sea port or container yard
6.Q:Does the packing strong?
A:Yes, all packages are double-checking before delivery
7.Q:How about after-sales service process?
A: We offer life time A.S.S. Please feel free to contact after-sales department.
8.Q:Are you manufacturer or trading company?
A: We are manufacturer. We have qualification for exporting goods.
9.Q:Do you have machines in stock?
A: For standard model, we have a large quantity in stock. For special model,
we need 20-30 days to produce it.
10.Q:Do you inspect machines before packing?
A:Of course we do.we have QC department to debug the machine before packing
11.Q:What’s the payment term?
A: T/T 30% in advance, the balance paid before delivery.
We also accept payment via West Union and L/C.
- Q: Do you accept factory visiting?
A: We are highly greeting for your visiting.
