- Linear modularity; It can be combined freely. More functions can be upgraded in the future.
- Ultra long conveyor makes the box glued more firmly
- Independent electrical case, exquisite and beautiful, with stronger anti-interference ability
Product Details
| Specification | |
|
|
| Function | Single side gluing +double sides gluing+lock bottom+4/6 corner |
| Paper board | 210-800 g/m², N/E/F corrugated box |
| Speed | 0-400 m/min |
| Power | 27KW 380V 3P |
| Weight | 6500KG |
| Package | 5 packages with wooden cases |
| Delivery Time | 30 days |
| MOQ | 1 set |
| Loading port | NINGBO PORT, CHINA |
| Payment | by TT/ LC/ Western Union |
| Shipping way |
By sea/ truck/ train/ courier |

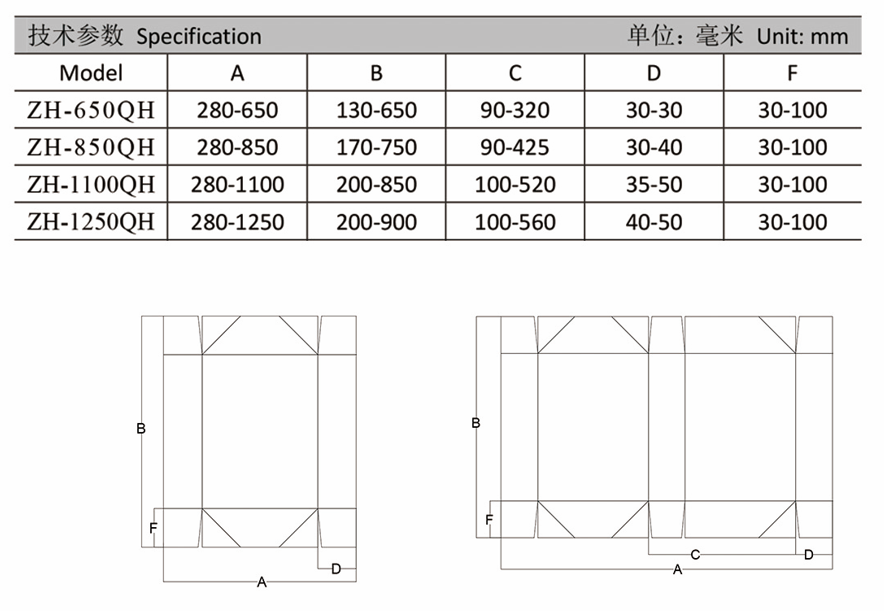

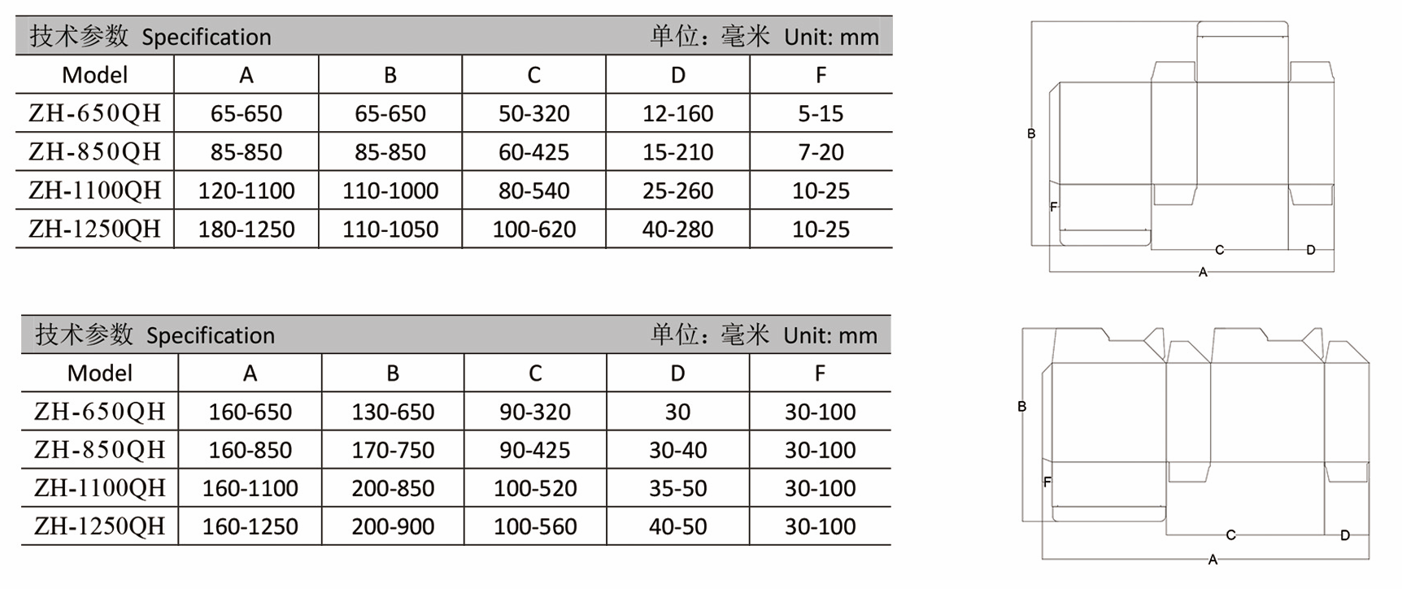

| Model | ZH-1100QH Unit: mm | ||||
| Box Type | A | B | C | D | F |
| Side gluing | 120-1100 | 55-900 | 60-540 | 25-260 | 10-25 |
| Lock bottom | 160-1100 | 125-850 | 65-520 | 40-250 | 10-25 |
| 4/6 corner | 280-1100 | 200-850 | 100-520 | 40-100 | 40-100 |
FAQ
1.Q:What is the machine warranty?
A: 12 months
2.Q:Does your machine with CE certificate?
A:Yes, issued by Italian organization
3.Q:What is the production time while placing order?
A: 7-30 days, some model has in stock.
4.Q:What can be offered after paying deposit?
A: processing video and picture; Oversea technical guidance; installation videos. Oversea technician.
5.Q:Can your company handle shipping for customers?
A:Of course, just give us destination sea port or container yard
6.Q:Does the packing strong?
A:Yes, all packages are double-checking before delivery
7.Q:How about after-sales service process?
A: We offer life time A.S.S. Please feel free to contact after-sales department.
8.Q:Are you manufacturer or trading company?
A: We are manufacturer. We have qualification for exporting goods.
9.Q:Do you have machines in stock?
A: For standard model, we have a large quantity in stock. For special model,
we need 20-30 days to produce it.
10.Q:Do you inspect machines before packing?
A:Of course we do.we have QC department to debug the machine before packing
11.Q:What’s the payment term?
A: T/T 30% in advance, the balance paid before delivery.
We also accept payment via West Union and L/C.
- Q: Do you accept factory visiting?
A: We are highly greeting for your visiting.
