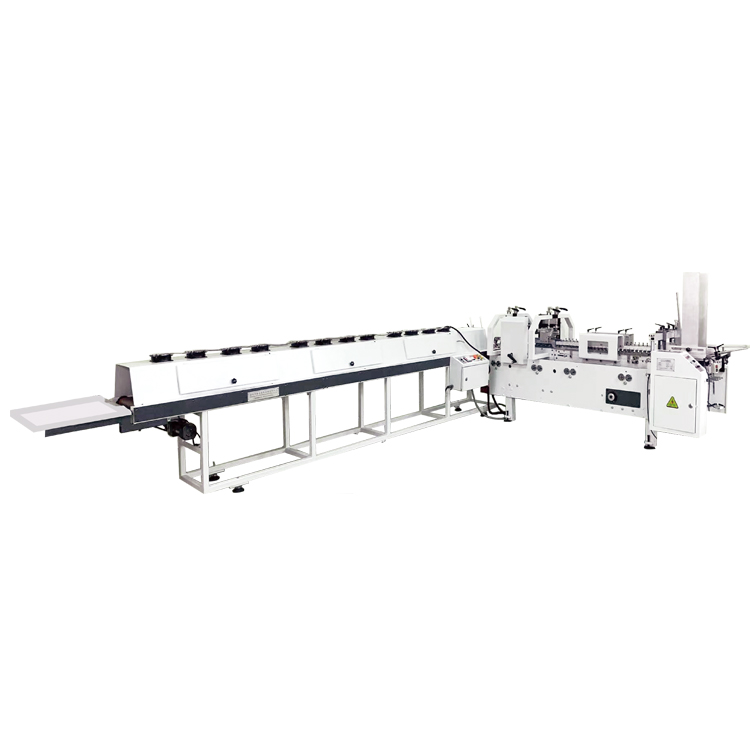

ZH-600YF not only has a stylish appearance, but also conforms to the latest human-machine operation mode internally. High speed and stability make it stand out among similar products.The whole machine adopts the most advanced transmission method. The precise and neat wiring method improves its safety.
Product Details
| Specification | |
|
|
| Function | Single side gluing +double sides gluing+lock bottom |
| Paper board | 210-800 g/m², N/E/F corrugated box |
| Speed | 0-300 m/min |
| Power | 4.5KW 380V 3P |
| Weight | 2000KG |
| Package | 3 packages with wooden cases |
| Delivery Time | 7-21 days |
| MOQ | 1 set |
| Loading port | NINGBO PORT, CHINA |
| Payment | by TT/ LC/ Western Union |
| Shipping way |
By sea/ truck/ train/ courier |

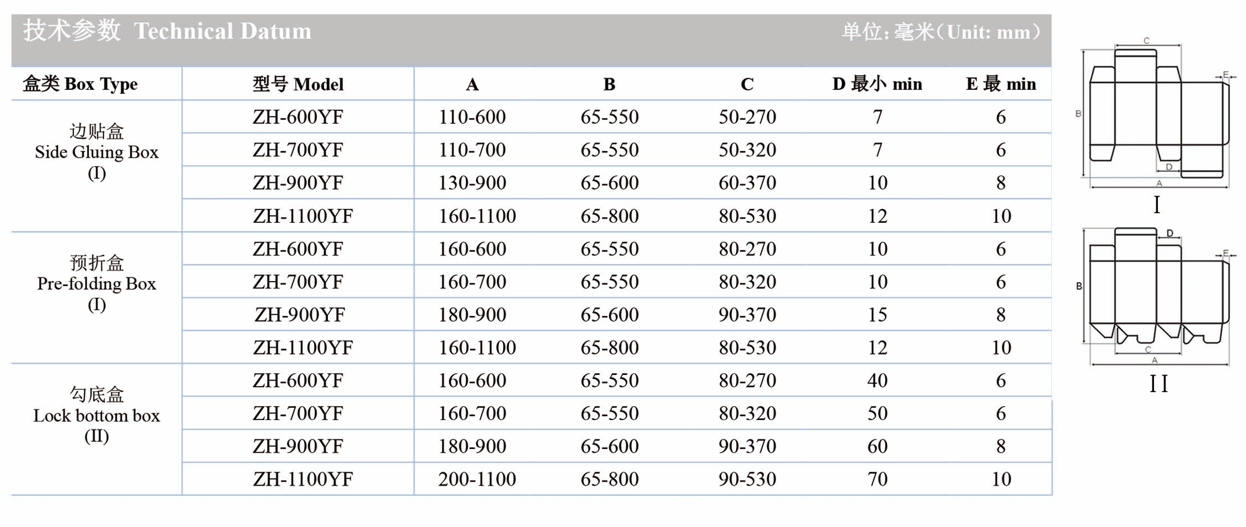

| Model | ZH-600YF | |||
| Box Type | Side gluing Box | Lock Bottom Box | ||
| A Max | (mm) | 600 | 600 | |
| A Min | (mm) | 110 | 160 | |
| B Max | (mm) | 550 | 550 | |
| B Min | (mm) | 65 | 65 | |
| C Max | (mm) | 320 | 320 | |
| C Min | (mm) | 50 | 80 | |
| D Min | (mm) | 7 | 40 | |
| E Min | (mm) | 6 | 6 | |
FAQ
1.Q:What is the machine warranty?
A: 12 months
2.Q:Does your machine with CE certificate?
A:Yes, issued by Italian organization
3.Q:What is the production time while placing order?
A: 7-30 days, some model has in stock.
4.Q:What can be offered after paying deposit?
A: processing video and picture; Oversea technical guidance; installation videos. Oversea technician.
5.Q:Can your company handle shipping for customers?
A:Of course, just give us destination sea port or container yard
6.Q:Does the packing strong?
A:Yes, all packages are double-checking before delivery
7.Q:How about after-sales service process?
A: We offer life time A.S.S. Please feel free to contact after-sales department.
8.Q:Are you manufacturer or trading company?
A: We are manufacturer. We have qualification for exporting goods.
9.Q:Do you have machines in stock?
A: For standard model, we have a large quantity in stock. For special model,
we need 20-30 days to produce it.
10.Q:Do you inspect machines before packing?
A:Of course we do.we have QC department to debug the machine before packing
11.Q:What’s the payment term?
A: T/T 30% in advance, the balance paid before delivery.
We also accept payment via West Union and L/C.
12.Q: Do you accept factory visiting?
A: We are highly greeting for your visiting.
