ZH-800D high performance 3 points gluer
ZH-800D adopts upper pressure belt to fold and glue the box. The machine runs more stable. It is equipped with 5 motors and the power of the whole machine is 3.7kw. The running speed is fast, and the productivity is high. In addition to the side sticker function, the machine also has pre-folding and bottom lock functions. It can be used in a variety of box types.
Product Details
| Specification | |
|
|
| Function | Single side gluing +double sides gluing+pre-folding+lock bottom |
| Paper board | 210-700 g/m², N/E/F corrugated box |
| Speed | 0-220 m/min |
| Power | 3.7KW 220V |
| Weight | 1800KG |
| Package | 3 packages with wooden cases |
| Delivery Time | 7-21 days |
| MOQ | 1 set |
| Loading port | NINGBO PORT, CHINA |
| Payment | by TT/ LC/ Western Union |
| Shipping way | By sea/ truck/ train/ courier |

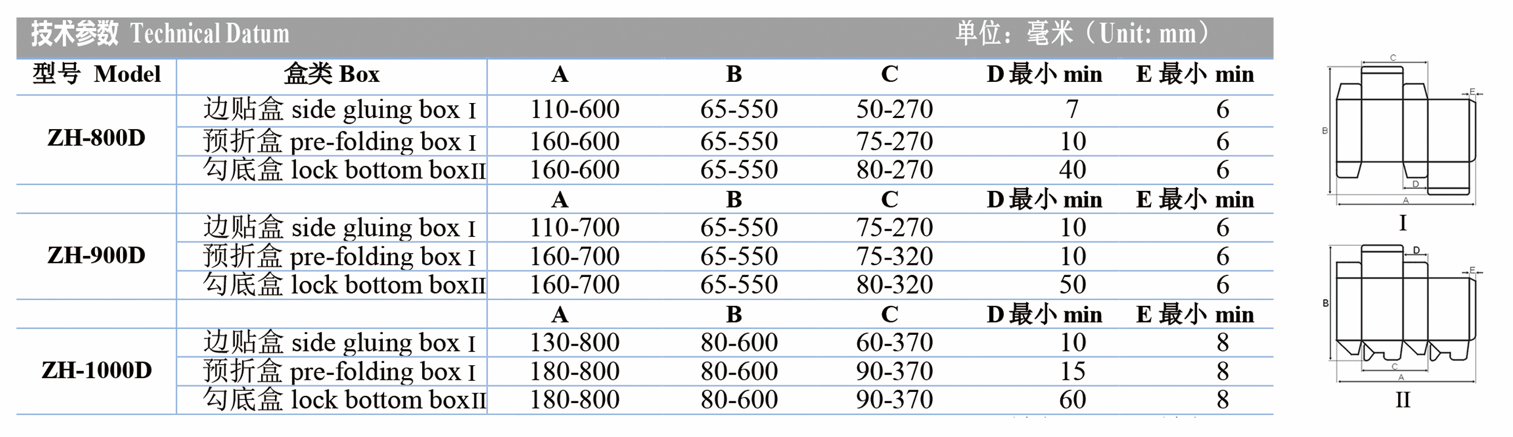

| Model | ZH-800D | ||||
| Box Type | Straight Line Box | Pre-folding Box | Lock Bottom Box | ||
| A Max | (mm) | 600 | 600 | 600 | |
| A Min | (mm) | 110 | 160 | 160 | |
| B Max | (mm) | 500 | 500 | 500 | |
| B Min | (mm) | 65 | 65 | 65 | |
| C Max | (mm) | 270 | 270 | 270 | |
| C Min | (mm) | 50 | 80 | 80 | |
| D Min | (mm) | 7 | 10 | 40 | |
| E Min | (mm) | 6 | 6 | 6 | |
FAQ
1.Q:What is the machine warranty?
A: 12 months
2.Q:Does your machine with CE certificate?
A:Yes, issued by Italian organization
3.Q:What is the production time while placing order?
A: 7-30 days, some model has in stock.
4.Q:What can be offered after paying deposit?
A: processing video and picture; Oversea technical guidance; installation videos. Oversea technician.
5.Q:Can your company handle shipping for customers?
A:Of course, just give us destination sea port or container yard
6.Q:Does the packing strong?
A:Yes, all packages are double-checking before delivery
7.Q:How about after-sales service process?
A: We offer life time A.S.S. Please feel free to contact after-sales department.
8.Q:Are you manufacturer or trading company?
A: We are manufacturer. We have qualification for exporting goods.
9.Q:Do you have machines in stock?
A: For standard model, we have a large quantity in stock. For special model,
we need 20-30 days to produce it.
10.Q:Do you inspect machines before packing?
A:Of course we do.we have QC department to debug the machine before packing
11.Q:What’s the payment term?
A: T/T 30% in advance, the balance paid before delivery.
We also accept payment via West Union and L/C.
- Q: Do you accept factory visiting?
A: We are highly greeting for your visiting.
